Product Description
Part Number:RKT6-400HC14-UL4
- Amplifier Output Power:400w RMS total (100w x 4) into 2-ohms at 14.4vdc
- Amplifier Class:Class D properly shielded against FM interference
- Manually Adjustable:Easily adjustable during installation with small screwdriver
- External Dimensions:7 ¼" X 4 ¾" X 1 ¾"
- Mounting Options:Amplifier mounts to the Lazer-cut stainless steel 2-piece bracket system, to provide solid and secure mounting inside the fairing
- Radio Compatibility:Amplifier is tuned for connection to the Harley GTS, 6.5GT, or 4.3 Std radio with Stock Harley Flash and is also fully compatible with the Sound Stream HDHU.14si, Precision Power HDHU.14si, & Fosgate PMX-HD14
- Speaker Size:6.58” (in.) Diameter
- Cone Construction:Black Glass-Fiber
- Tweeter:PEI Dome High-Output
- Frequency Response:35-23kHz
- Sensitivity:91 db
- Magnet Material:Lightweight Neodymium
- Impedance:2 Ohms
- Maximum Power:200 Watts
- RMS Power:130 Watts
- Mounting Depth:2 1/4” (in.)
- Weather Resistant:Yes
- OEM Size Match:Yes
- Comparision Rating:ROKKER speakers and amplifiers provide the most significant increase in volume and overall fidelity compared to stock Harley and/or Fosgate.
This complete custom speaker/amp installation kit has been designed for the 2014-2024 Harley® Ultra, Ultra Ltd or Tri-Glide fairing.
ROKKER speakers are spec'd at 2 ohms impedance and 200 watts maximum input (130w RMS - 91db sensitivity), these speakers provide excellent on-highway performance.

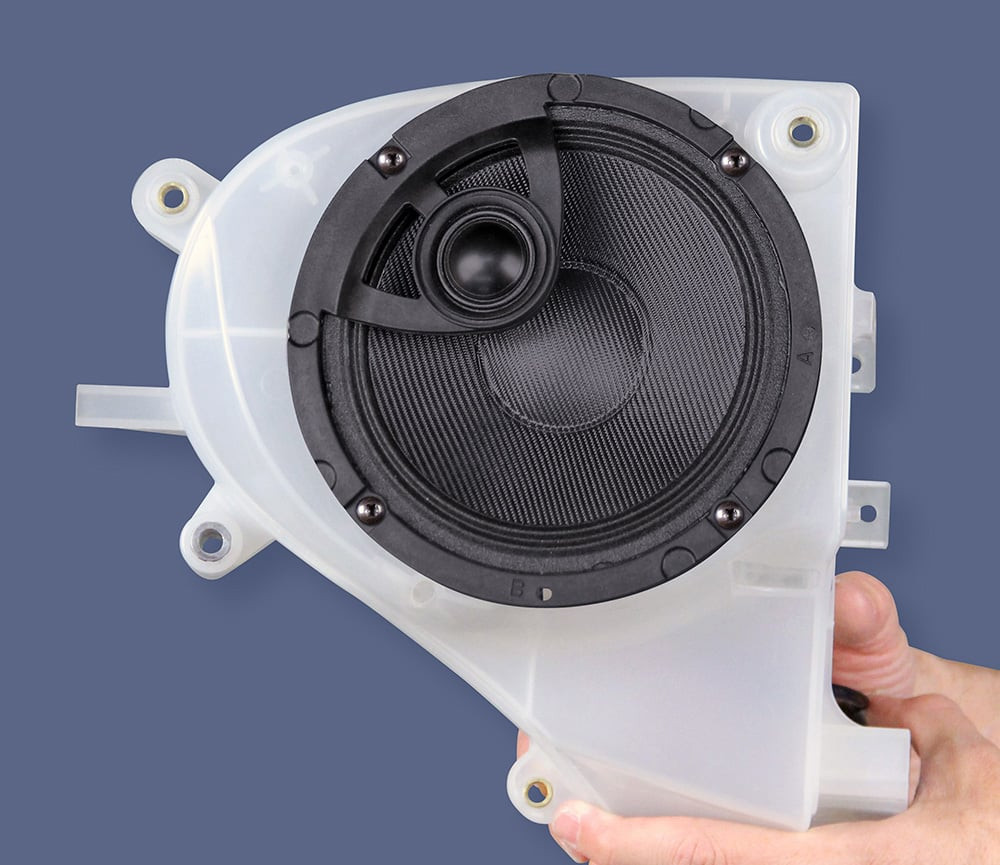

Speaker drivers feature lightweight waterproof woven-fiber cones with super-rigid metal basket and a high-density lite-weight Neodymium magnet structure with integral high-output PEI tweeters.
Mounting hole pattern and spade electrical connections are exactly the same as the factory specification.
The new ROKKER 4-channel 400w amplifier kit has been designed specifically for the 2014-2024 Harley® Ultra, Ultra Ltd or Tri-Glide fairing with the stock Harley 4.3 Std, 6.5GT or GTS touch-screen radio, and is tuned for the stock Harley flash, NO SPECIAL FLASH needed.
This new amplifier kit is also fully compatible with the Sound Stream HDHU.14si, Precision Power HDHU.14si, & Fosgate PMX-HD14
This is a full range class D amplifier and is spec’d at 100watts RMS per channel X4 channels, (400w total) driven continuous into a 2- or 4-ohm speaker load.
Amplifier mounts to the Lazer-cut stainless steel 2-piece bracket system, to provide solid and secure mounting inside the fairing.
Custom made plug-n-play JMC red-band wiring harnesses are included with this complete amplifier kit, top quality heavy gauge power/ground wires are used for the fused battery connection, along with all necessary mounting hardware & complete installation/operation instructions.
Amplifier itself measures 7 ¼ x 4 ¾ x 1 ¾
Harley Radio Programming Note: If your Harley infotainment radio was previously flashed to a different configuration from stock, (i.e., BoomI or Boom II) instruct your dealer to re-flash the radio back to “” 4-Speakers, Upper-Fairing, Rear-Pods, No-Amp “” using the Harley or other brand digital technician, prior to the installation of this complete kit.
