Product Description
Part Number:RPKT-400HR11-UL
- Amplifier Output Power:400w RMS total (100w x 4) into 2-ohms at 14.4vdc
- Amplifier Output Power:Class D properly shielded against FM interference
- Manually Adjustable:Easily adjustable during installation with small screwdriver
- External Dimensions:7 ¼" X 4 ¾" X 1 ¾"
- Speaker Size:6.58”/5.25”(in.) Diameter
- Cone Construction:Black Glass-Fiber/Poly
- Tweeter:PEI Dome High-Output/Mylar Cone
- Frequency Response:35-23kHz
- Sensitivity:91 db
- Magnet Material:Lightweight Neodymium
- Impedance:2 Ohms
- Maximum Power:200 Watts
- RMS Power:130 Watts
- Mounting Depth:2 1/4” (in.)
- Weather Resistant:Yes
- OEM Size Match:Yes
- Comparision Rating:ROKKER speakers and amplifiers provide the most significant increase in volume and overall fidelity compared to stock Harley and/or Fosgate.

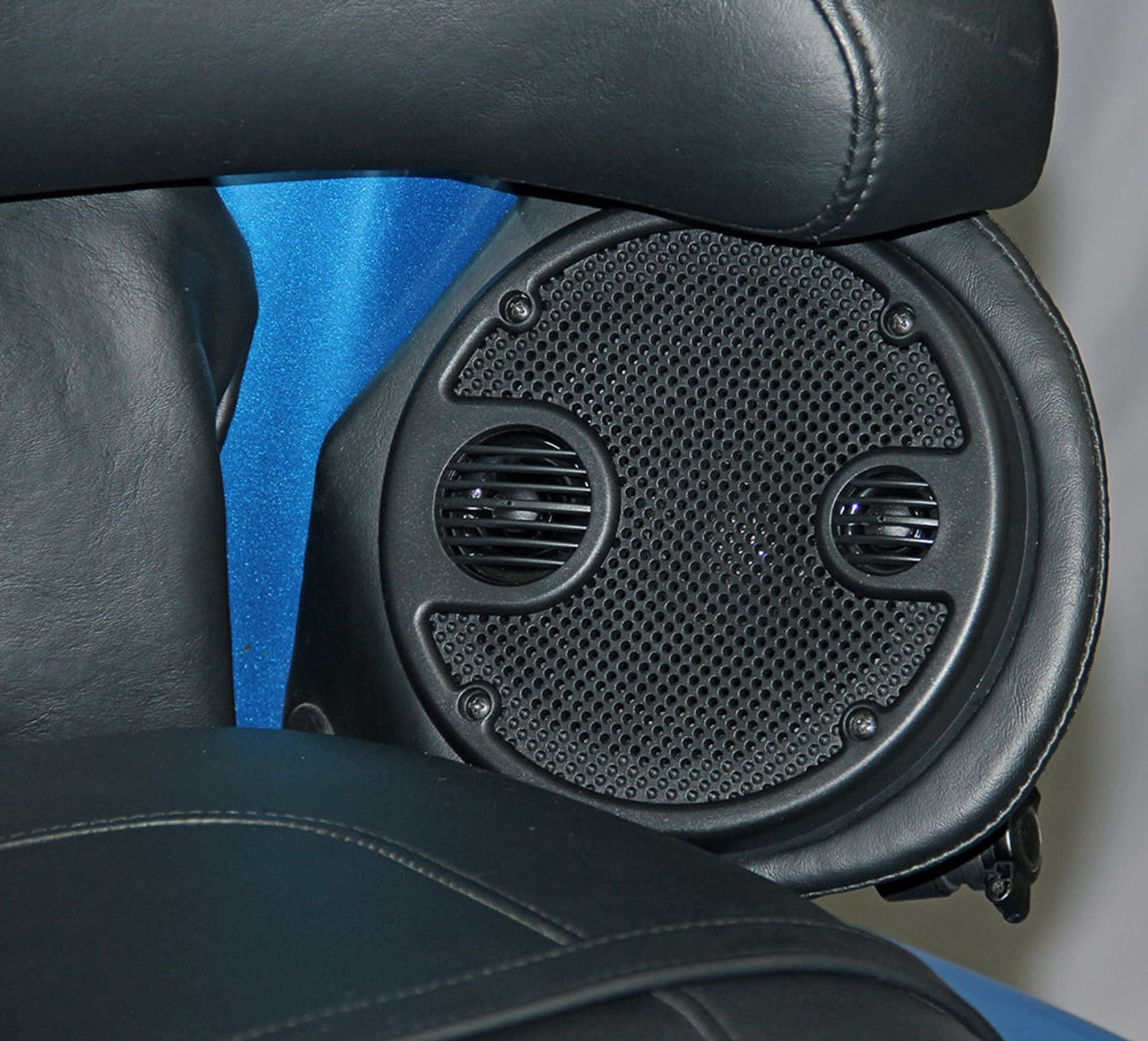

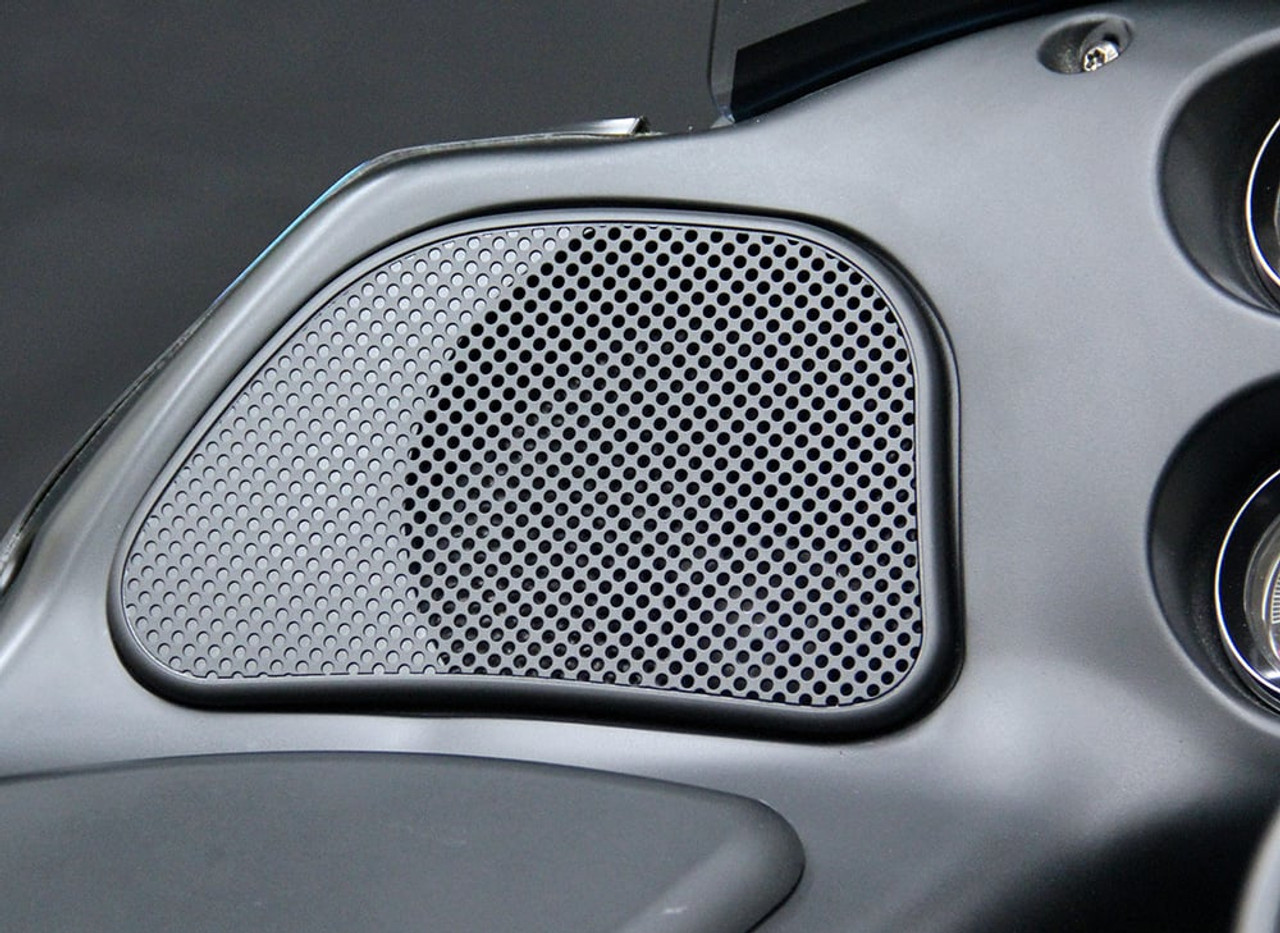

This complete custom speaker/amp installation kit has been designed for the 2011-2013 Harley® RoadGlide Ultra.
ROKKER speakers are spec'd at 2 ohms impedance and 200 watts maximum input (130w RMS - 91db sensitivity), these speakers provide excellent on-highway performance.
Speaker drivers feature lightweight waterproof woven-fiber/poly cones with super-rigid metal basket and a high-density lite-weight Neodymium magnet structure with integral high-output PEI tweeters.
Spacer mounting hole pattern and spade electrical connections are exactly the same as the factory specification, this is a total plug-and-play no-modification solution complete with easy to follow installation instructions.
The new ROKKER 4-channel 400w amplifier kit has been designed specifically for use in the 2011-2013 Harley® RoadGlide Ultra fairing with the stock Harley radio.
This new amp kit will also connect to the Boss, Jensen, Aquatics, Fosgate or Sony replacement HD radios with direct RCA-RCA connections and is easily adjustable in the field with a small screwdriver.
This is a full range class D amplifier and is spec’d at 100watts RMS per channel X4 channels, (400w total) driven continuous into a 2 ohm load @ 14.4vdc.
Amplifier mounts to custom made stainless steel 2-piece bracket system, to provide solid and secure mounting inside the fairing.

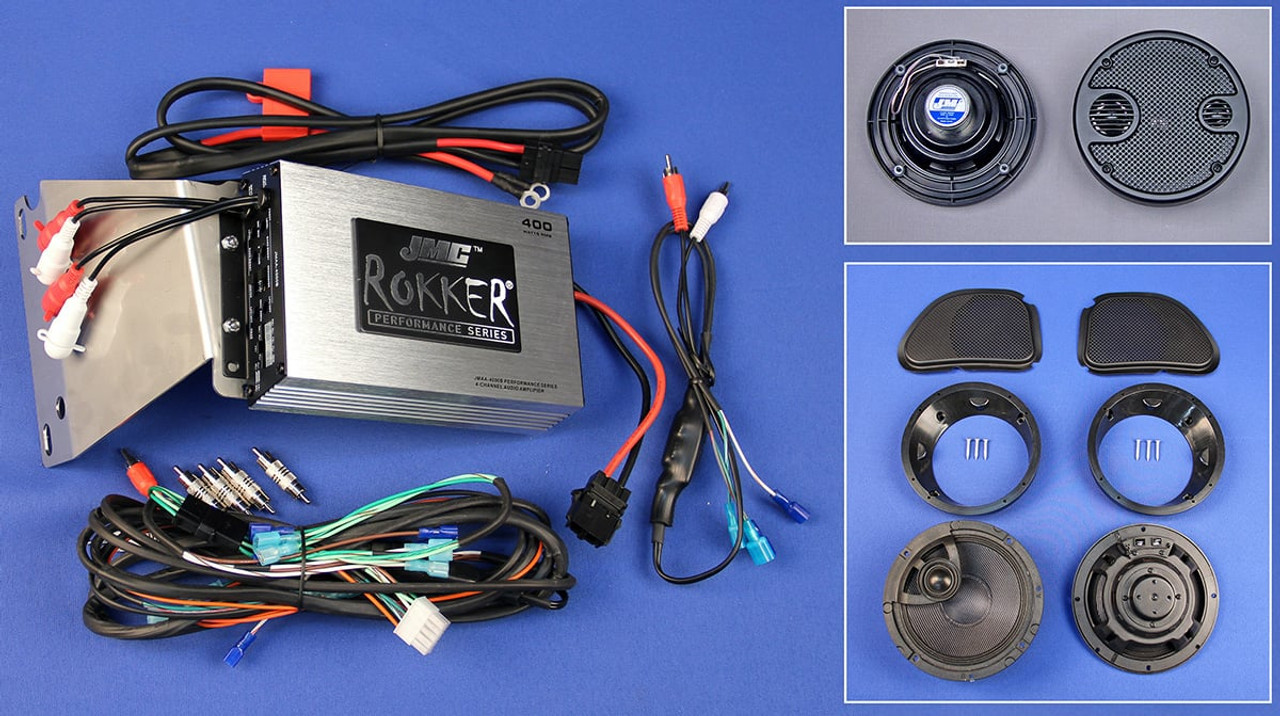

Custom made plug-n-play wiring harnesses/RCA-RCA direct cable adapters are included with this complete audio kit, top quality heavy gauge power/ground wires are used for the fused battery connection, along with all necessary mounting hardware & complete installation/operation and tuning instructions.
Amplifier itself measures 7 ¼" X 4 ¾" X 1 ¾".
