Product Description

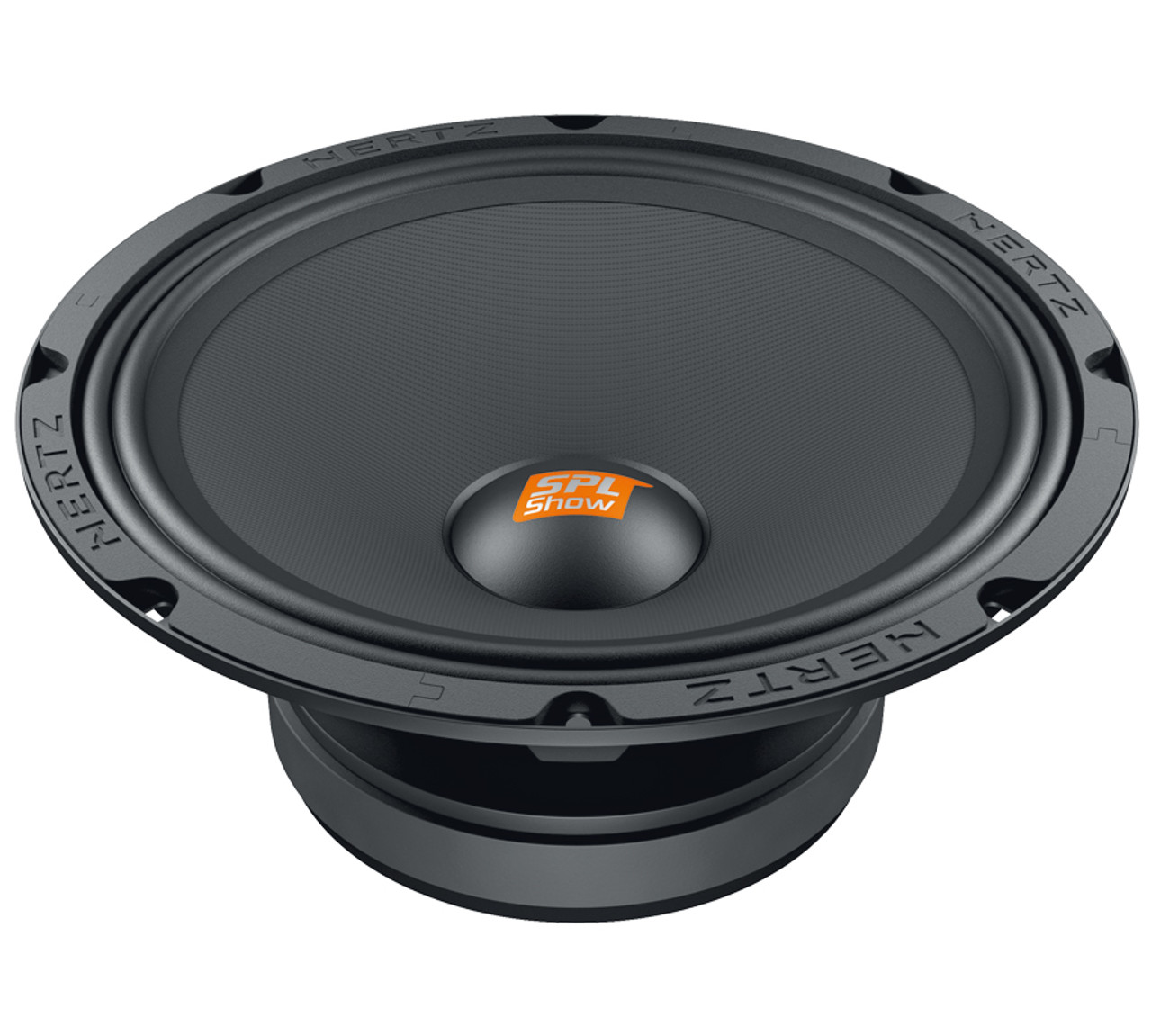

SV 250.1
250 (10) mm (in.) | Spl Midrange | 500 W | 4 Ohm
The SV 250.1 car audio midrange is the most versatile solution for SPL dedicated installations. Like the SX subwoofers, the SV 250.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Component | SPL Midrange |
Size mm (in.) | 250 (10) |
Power Handling - Continuous W | Hi-pass filtered @ 150 Hz - 12 dB Oct. |
Power Handling - Peak W | 500 |
Impedance Ohm | 4 |
Voice Coil ? | 50 (2) |
Frequency Response Hz | 90 ? 7k |
Magnet size D x d x h mm (in.) | 155 x 70 x 20 (6.1 x 2.8 x 0.8) |
Weight of one speaker kg (lb.) | 4 (8.8) |
Magnet | High density flux ferrite |
Cone | Ultra light pressed paper |
Product Videos
Custom Field
Speaker Size 10"
