Product Description

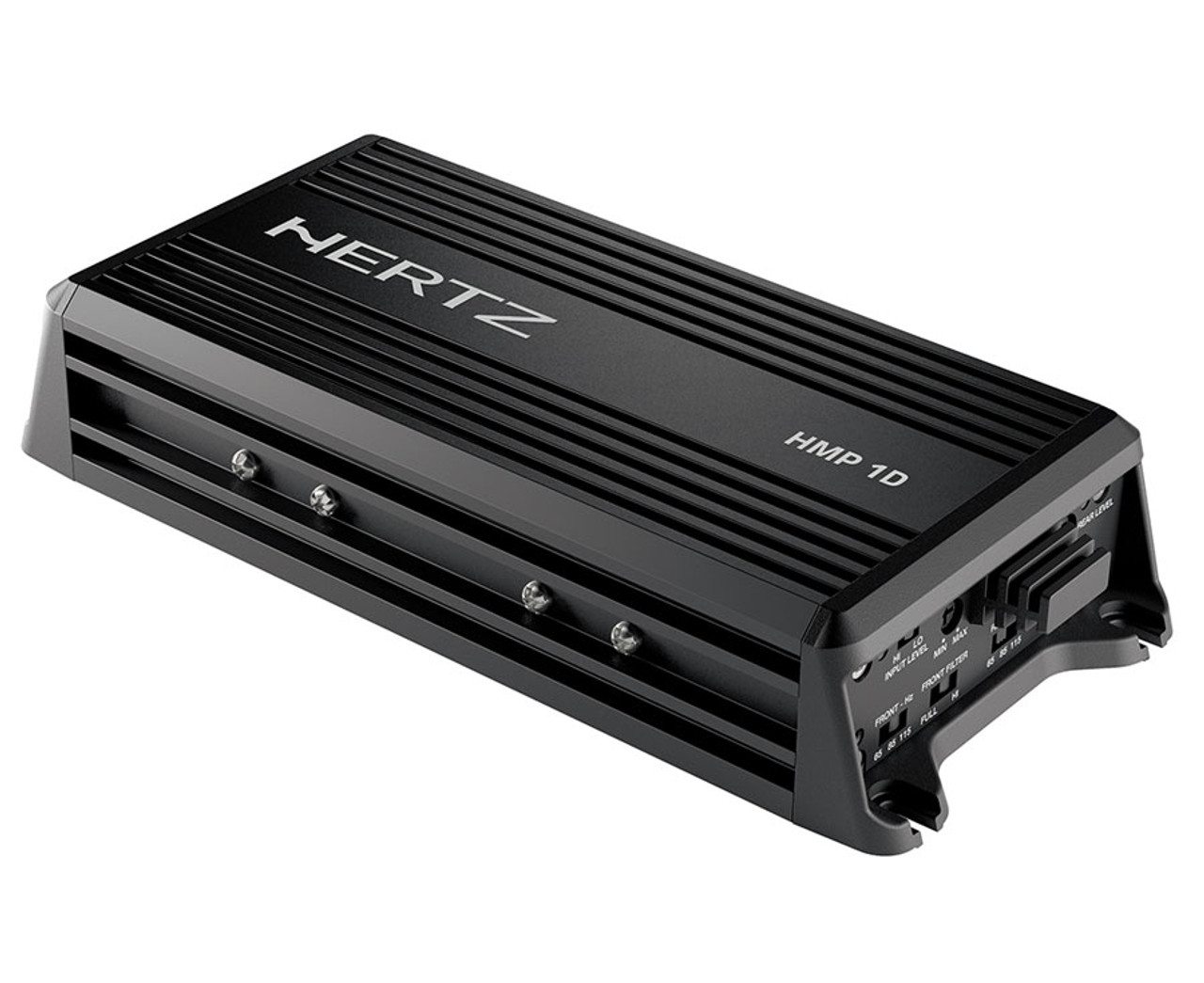

HMP 1D
Ch: 1 | 300 W
Thanks to the ultra-compact cast-aluminium chassis?(IP64 rated), the HMP 1D amplifiers is nature-proof, being?the ideal choice for UTV/ATV/motorcycle installations. It?features an incredible power/size ratio and?an easy setup thanks to the integrated crossover filter.?The Front End section features a complete and bypassable?crossover system, providing full system design?flexibility with or without external processors, offering the?user endless connection possibilities with any source.?Inputs feature a special balanced circuitry, ensuring high?rejection against electro-magnetic interferences, for?noise-free results.?The level of HMP 1 D amplifiers can be remote controlled?with the included HRC BM (Hertz Remote Control Bass?Management). Connected to the Remote Control plug,?this provides extremely precise volume level from the?comfort of your seat.
General Specs
Channels | 1 |
Power Supply | |
Power supply voltage / fuse: | 11?15 VDC / 1 x 15 A |
Idling current (power ON/OFF): | 1 A / 0.04 mA |
Consumption @ 2?, 14.4 VDC (Max Musical Power): | 15 A |
Remote In: | 4 ? 15 VDC - 1 mA |
ART : | Automatic Remote Turn-On/Off |
Amplifier Stage | |
Distortion - THD (100 Hz @ 4?): | 0.1 % |
Bandwidth: | 10 ? 500 Hz |
S/N Ratio (A weighted @ 1 V): | 105 dB |
Damping factor (100 Hz @ 4?): | 300 |
Pre-In sensitivity: | LO: 0.2 ? 5 V HI: 0.8 ? 20 V |
Load impedance (MIN) @ 2 Ch: | 2? |
Max size (mm/in.): | 223 x 100.5 x 43.6 / 8.77 x 3.95 x 1.70 |
Weight (kg/lb.): | 1.35 / 2.97 |
Adjustable Crossovers | yes |
Product Videos
Custom Field
Amp Channels 1
