Product Description

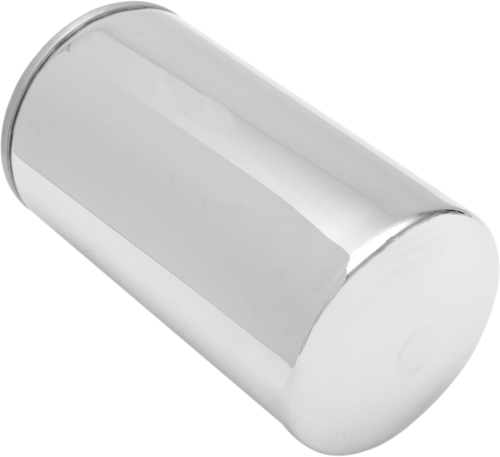

HD Oil Filters- Media enhancement by M-Pleating, increases Dust Holding Capacity (D.H.C) and reduces pressure drop
- The zigzag pleating pattern provides more filtration area allowing more dust holding capacity (DHC)
- Additional filtration area gives the oil more room to flow, resulting in lower pressure drop
- The media is resin-impregnated to ensure structural integrity during its operation under pressure and temperature spikes Forming tapped thread for easy installation and spin-on
- Pre-lubricated gasket
- The gasket is lubed from the factory to aid installation
- The base plate is covered with shrink film to ensure that the lube stays there until the time of usage and dust protection
- Standard features plus the following:
- Heat-resistant Anti-Drainback valve (ADBV)
- Unlike standard nitrile rubber, silicone rubber has a higher heat-resistance
- The enhanced ADBV will prevent dry starts and provides durability throughout the extended life of the filter
- 17mm Hex Nut
- Easy for service and removal after prolonged usage
- The nut is designed for safety wire attachment if needed
- 16 Weld spots for higher nut fatigue strength
- +30% Gauge thickness for higher burst strength
- Oval inlet hole for even lower flow resistance
