Product Description

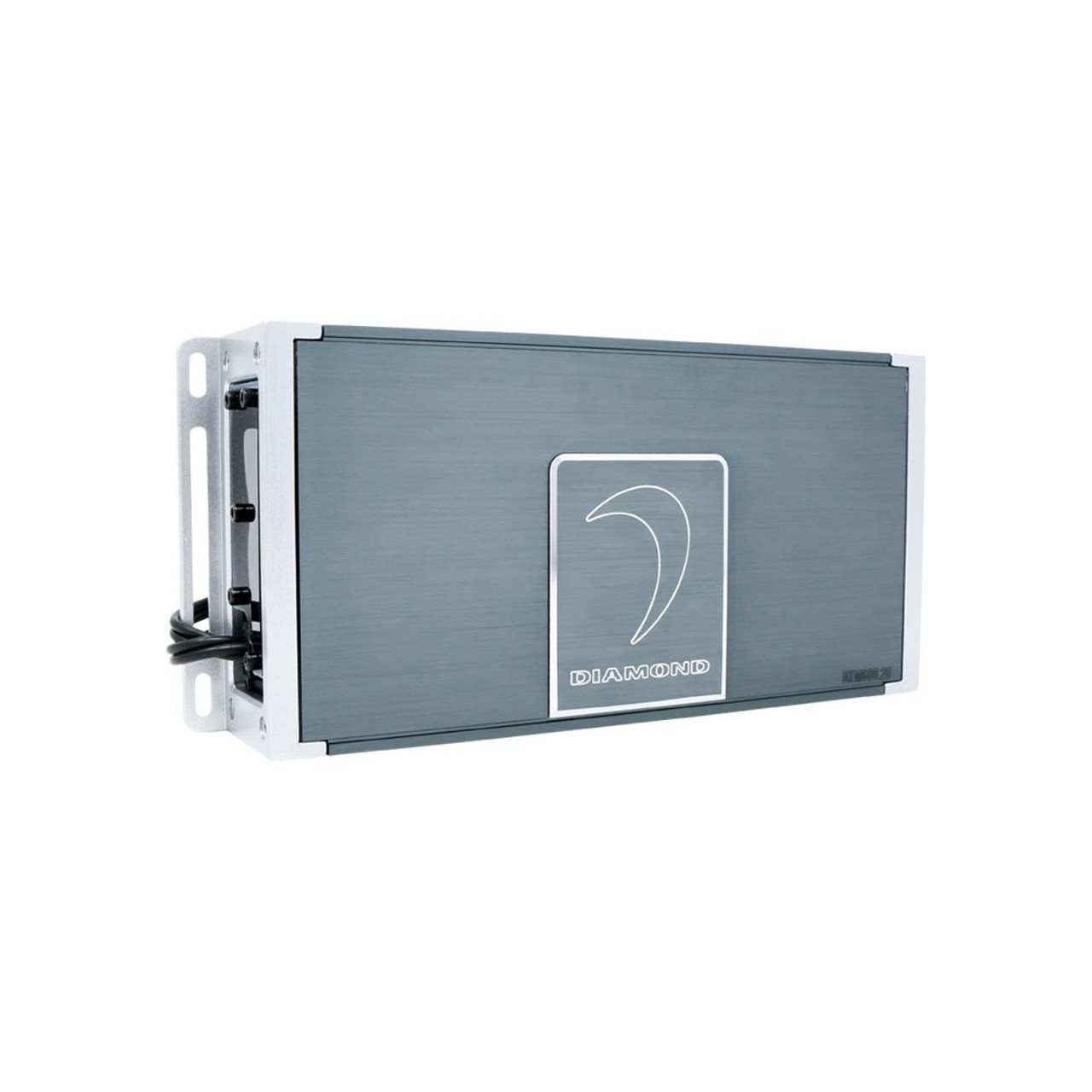

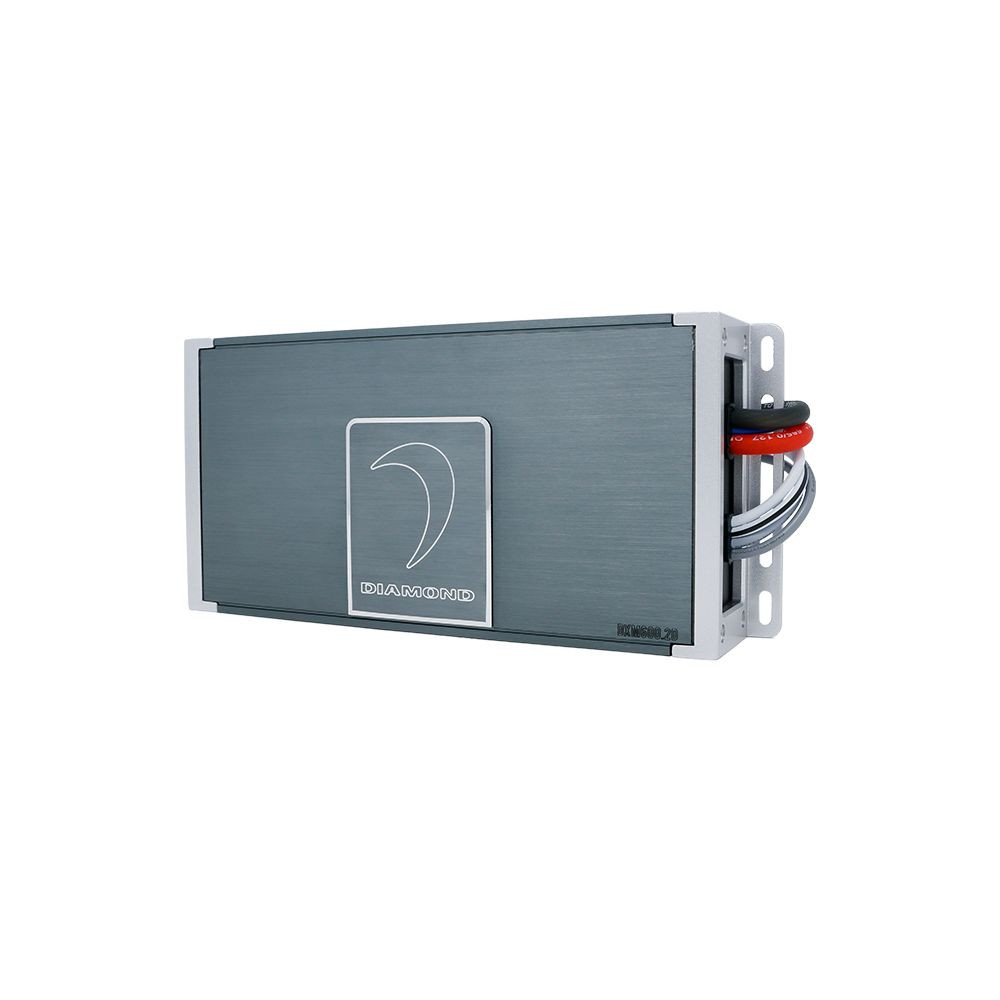

DXM600.2D - DXM 2-Channel Full Range Class D Waterproof Amplifier
IPX67 RATED Waterproof multi-layer circuit boards for marine applications - Balanced differential inputs for noise-free operation regardless of the source - Full-range digital Class D technology with Direct FET power MOSFET output stage - 12dB per octave adjustable crossovers and phase control for system tuning. Selectable 3 option Auto Turn-On Mode circuit designed to work with ANY OEM head-unit, simplifies installation.Features:
- 300W x 2CH @ 2? / 200W x 2CH @ 4? / 600W x 1CH @ 4? Bridged RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable X-Over: LPF / FULL / HPF
- Bass Boost: 0-18dB
- Dimensions: 9.5? x 4.33? x 1.73? / 241.6 x 110 x 44.0 mm
- RCA Input & Line-Out, Speaker,Power Supply Harness Kits Included
| Amplifier | 2 Channel |
|---|---|
| RMS Power(2?) | 300 W X 2 |
| RMS Power (4?) | 200 W X 2 |
| RMS Bridge (mono 4?) | 600 W X1 |
Product Videos
Custom Field
Amp Channels 2
